--- Knud van Eeden --- 06 July 2008 - 08:25 pm -----------------------

Computer: Editor: TSE: Syntax: Highlight: How to possibly create syntax highlighting for your XML file?

---

Steps: Overview:

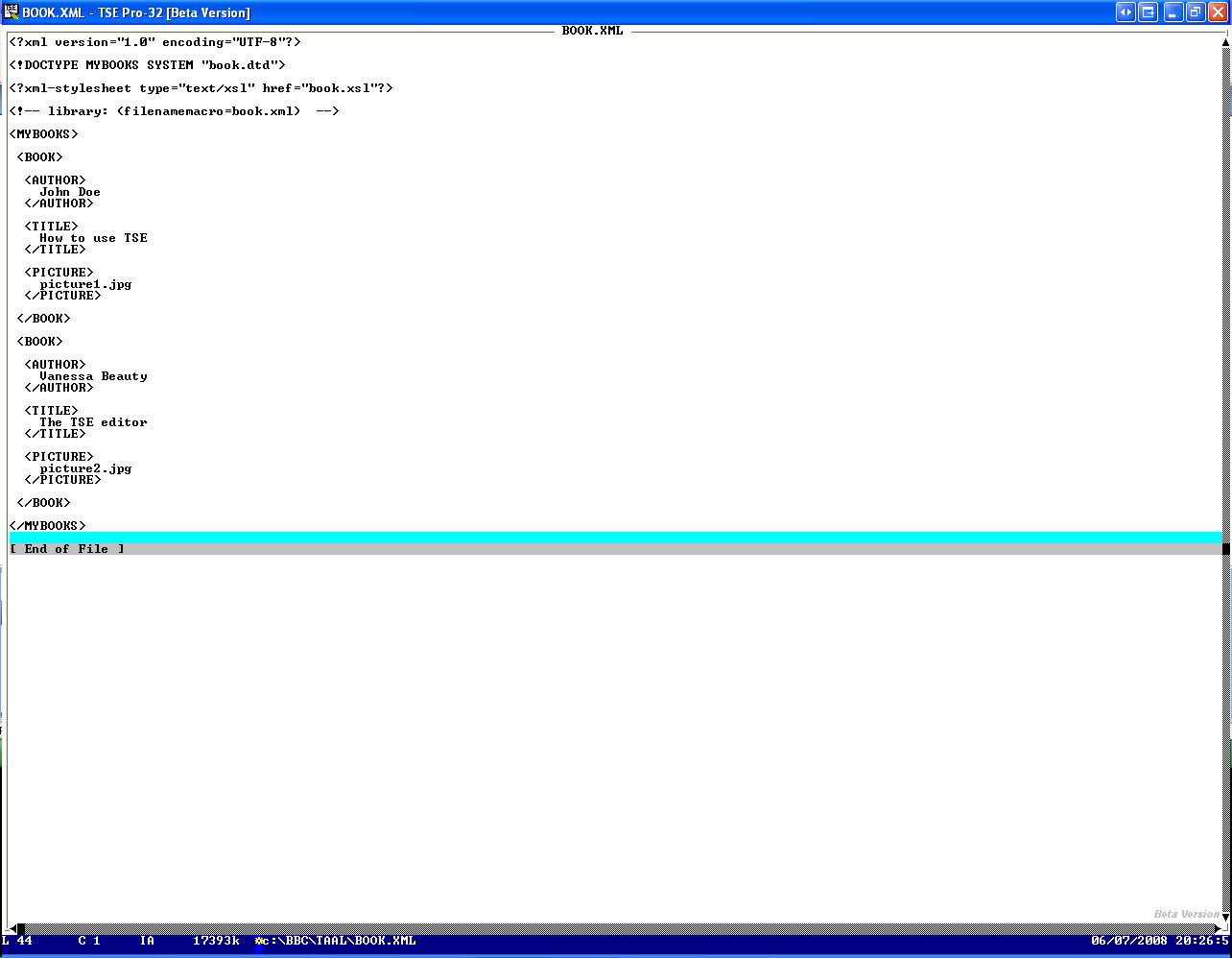

 1. -Given e.g. your XML file

--- cut here: begin --------------------------------------------------

<?xml version="1.0" encoding="UTF-8"?>

<!DOCTYPE MYBOOKS SYSTEM "book.dtd">

<?xml-stylesheet type="text/xsl" href="book.xsl"?>

<!-- library: (filenamemacro=book.xml)  -->

<MYBOOKS>

 <BOOK>

  <AUTHOR>
    John Doe
  </AUTHOR>

  <TITLE>
    How to use TSE
  </TITLE>

  <PICTURE>
  </PICTURE>

 </BOOK>

 <BOOK>

  <AUTHOR>
    Vanessa Beauty
  </AUTHOR>

  <TITLE>
    The TSE editor
  </TITLE>

  <PICTURE>
  </PICTURE>

 </BOOK>

</MYBOOKS>

--- cut here: end ----------------------------------------------------

 2. -Collect your keywords

     1. -Extract (manually, or using a TSE macro) your tag keywords

--- cut here: begin --------------------------------------------------

AUTHOR
BOOK
MYBOOKS
TITLE

--- cut here: end ----------------------------------------------------

 3. -Divide these keywords in color groups,
     and put that in your syntax highlight .txt file

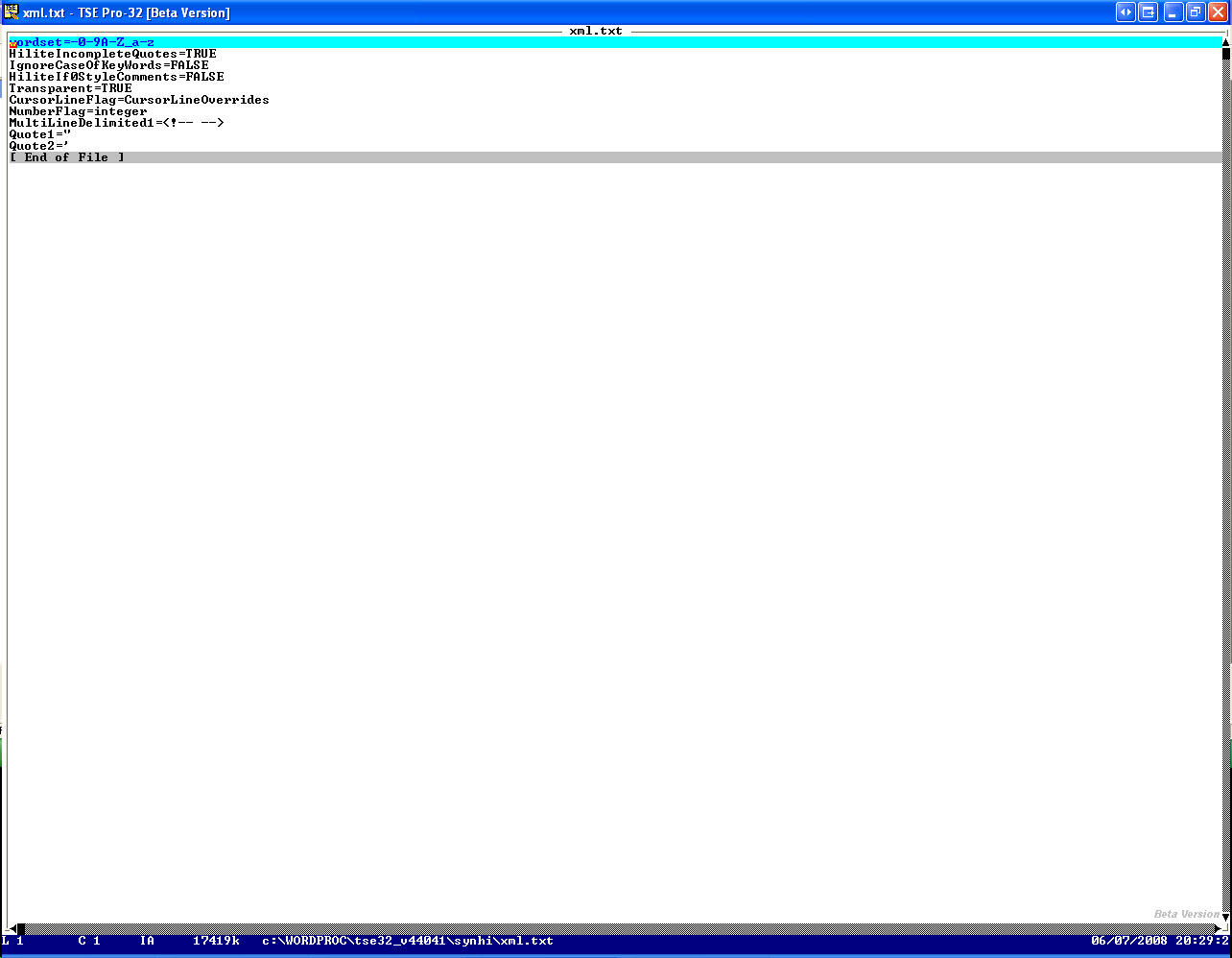

     1. -Syntax highlight xml.txt file: before

--- cut here: begin --------------------------------------------------

wordset=-0-9A-Z_a-z
HiliteIncompleteQuotes=TRUE
IgnoreCaseOfKeyWords=FALSE
HiliteIf0StyleComments=FALSE
Transparent=TRUE
CursorLineFlag=CursorLineOverrides
NumberFlag=integer
MultiLineDelimited1=<!-- -->
Quote1="
Quote2='

--- cut here: end ----------------------------------------------------

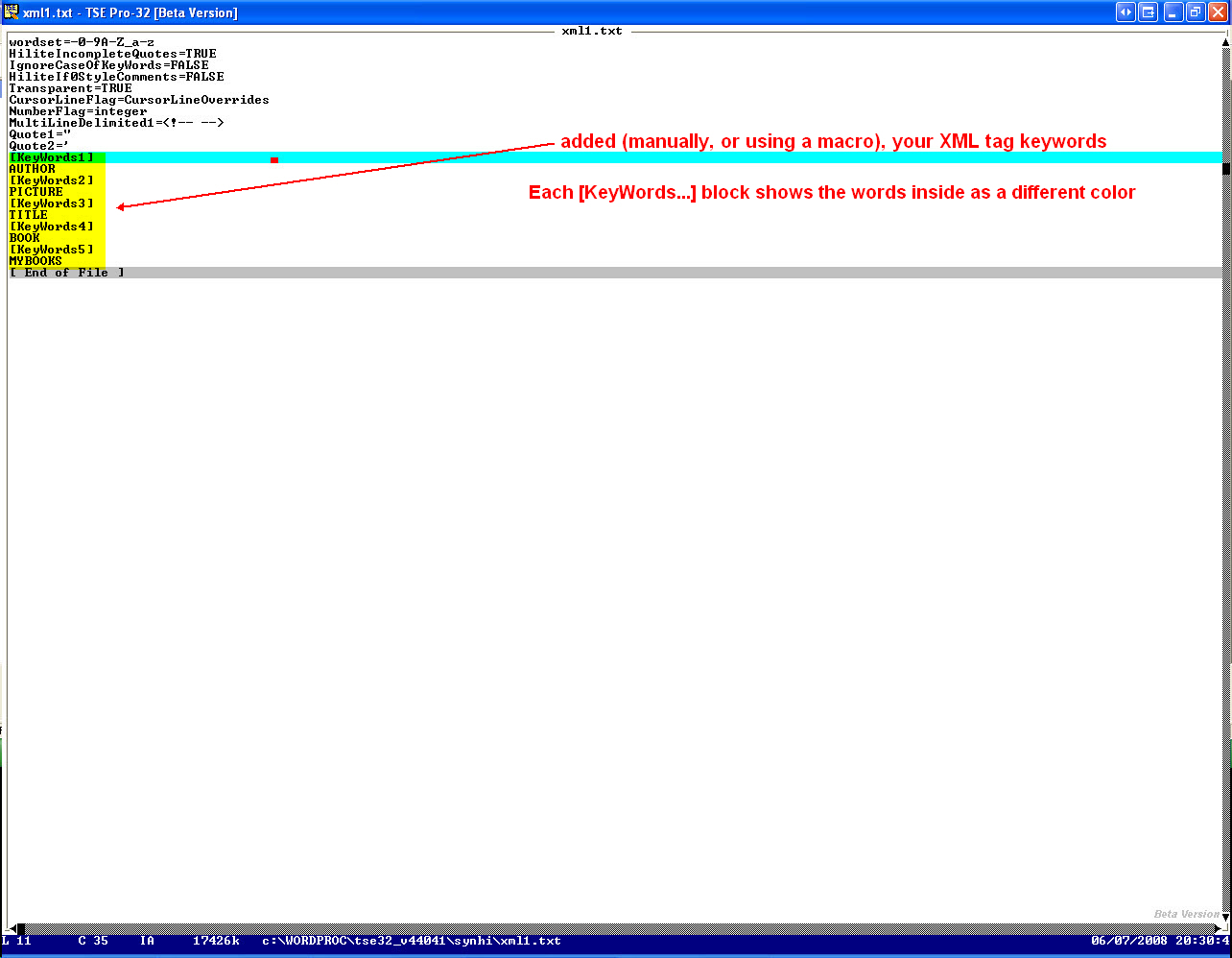

     2. -Syntax highlight xml.txt file: after

--- cut here: begin --------------------------------------------------

wordset=-0-9A-Z_a-z
HiliteIncompleteQuotes=TRUE
IgnoreCaseOfKeyWords=FALSE
HiliteIf0StyleComments=FALSE
Transparent=TRUE
CursorLineFlag=CursorLineOverrides
NumberFlag=integer
MultiLineDelimited1=<!-- -->
Quote1="
Quote2='
[KeyWords1]
AUTHOR
[KeyWords2]
[KeyWords3]
TITLE
[KeyWords4]
BOOK
[KeyWords5]
MYBOOKS

--- cut here: end ----------------------------------------------------

 4. -Use e.g. the macro as described in 'How to possibly convert automatically a .txt file to .syn file?'

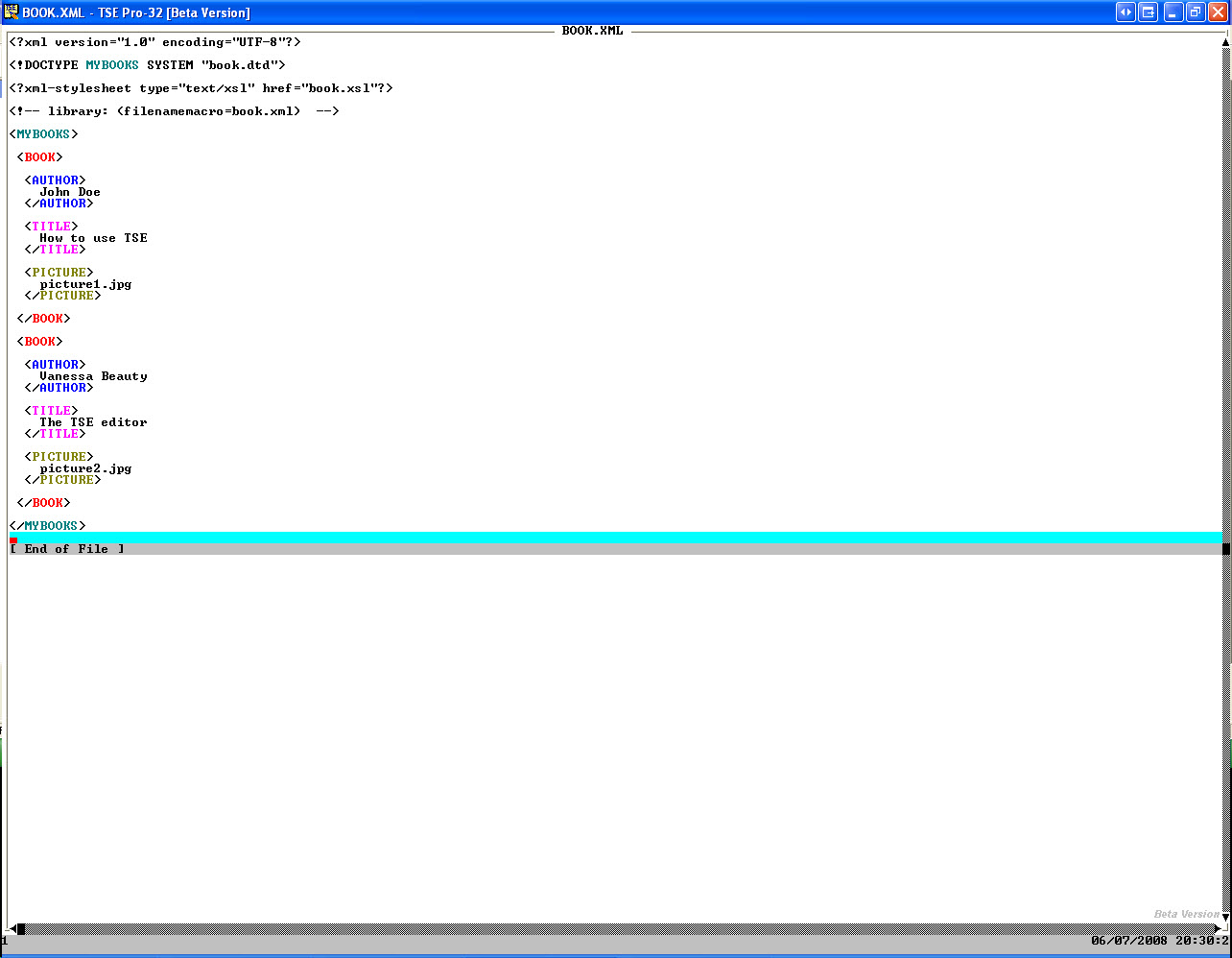

 5. -That will show your XML with that tags syntax highlighted

===
