---------------------------------------------------------------------- --- Knud van Eeden --- 01 March 2008 - 03:58 pm ---------------------- Computer: Editor: Text: TSE: Cryptography: Programming: Algorithm: Encryption: Self inverse: Can you give examples of self inverse swapping algorithms? [central axis character swapping / symmetry / rotation / rot13 / encryption] === Methods: -Decrypt and encrypt the (TSE) files using e.g. the rot13 method. or -Buy e.g. Kingston USB that will encrypt all the files you put on it automatically or -Use any USB stick, but put TrueCrypt on it. or -Professional grade encryption using the OpenSSL program from the command line. === Introduction --- 1. Encryption in TSE could be used to e.g. protect your information sensitive files. Examples are personal addresses, personal telephone numbers, personal events, personal information, passwords, ... --- 2. You could e.g. have unencrypted TSE master files at home, and taking your encrypted TSE backup files (e.g. containing passwords) with you on e.g. a USB stick. === 3. Encryptable USB protected with password Another very good and simple solution is to buy an encryptable USB stick (e.g. Kingston USB) to store your (TSE) files on. Secured with a password. No password shows only a very small part of the total space, only supplying the passwords reveals all files. === 4. USB protected with encrypt utility You could also buy or use an USB stick and install e.g. TrueCrypt (free download) on it. That will create a special drive which is encrypted and secured with a password. === 5. Encrypting and decrypting your files using openssl. Another very good solution is to use the program OpenSSL and e.g. encrypt via the command line. http://osxdaily.com/2012/01/30/encrypt-and-decrypt-files-with-openssl/ http://www.openssl.org/related/binaries.html === 6. -Source: Henri Pikaar > See file 'uutse230.zip' from Fabio Ferrero which encodes/decodes uu/xx/mime64 on the semware filesite http://www.semware.com/html/tseprofilesd.php#FONTS === Definition Self-inverse encryption = the same code can be used for encoding and decoding. === Special cases of self-inverse encryption: 1. Rotate (or swap) around central axis 1. -It is a special case of symmetry 1. -Reflection If you reflect your action twice against a central axis you undo your action. Like a reflection in a mirror. If you are standing 1 meter in front of a fence then jump 1 meter over the fence, and back 1 meter over the fence (all on the same straight line) you are back at your original position. 2. -The mathematical operation is --- cut here: begin --------------------------------------------------

x = -x

--- cut here: end ---------------------------------------------------- This is a special case of a rotation over 180 degrees. It follows from the general form of the (2D) linear transformation --- cut here: begin --------------------------------------------------

            xnew = a11 . xold + a21 . yold

            ynew = a21 . xold + a22 . yold

--- cut here: end ---------------------------------------------------- which can be written as --- cut here: begin --------------------------------------------------

            xnew = cos( rotationangle ) . xold - sin( rotationangle ) . yold

            ynew = sin( rotationangle ) . xold + cos( rotationangle ) . yold

--- cut here: end ---------------------------------------------------- thus in the special case if you choose rotationangle equal to 180 degrees you get --- cut here: begin --------------------------------------------------

           xnew = cos( 180 degrees ) . xold - sin( 180 degrees ) . yold

           ynew = sin( 180 degrees ) . xold + cos( 180 degrees ) . yold

--- cut here: end ---------------------------------------------------- or thus --- cut here: begin --------------------------------------------------

          xnew = ( -1 ) . xold - ( 0 ) . yold

          ynew = ( 0 ) . xold + ( -1 ) . yold

--- cut here: end ---------------------------------------------------- or thus --- cut here: begin --------------------------------------------------

          xnew = -xold

          ynew = -yold

--- cut here: end ---------------------------------------------------- In other words, if you rotate around a central axis over 180 degrees, you flip signs (x=-x). By repeating this rotation over 180 degrees twice, or thus you rotate over 360 degrees, a full circle, you get --- cut here: begin --------------------------------------------------

-(-x)

--- cut here: end ---------------------------------------------------- and this is thus by definition (minus times minus gives plus) the same as --- cut here: begin --------------------------------------------------

--- cut here: end ---------------------------------------------------- and you have thus your original back again, or you are thus back in the same x position. A series of repetitions that is a multiple of 2 brings it back in the original position. 2. -The rotation axis is located at the half (for symmetry purposes) of the range 1. -In general this axis position in the middle of 2 given numbers is at --- cut here: begin --------------------------------------------------

            ( number1 + number2 ) / 2

           number1
           -----------------|


           number2
           -----------------------------------------|


           number1
           -----------------|-----------------------|
                             <-- number2-number1 -->


           number at half between

           -----------------|-----------|-----------|
                                        ^
                                        |
                                        = number1 + ( number2 - number1 ) / 2

                                        = number1 + (number2) / 2 - (number1) / 2

                                        = number1 / 2 + number2 / 2

                                        = ( number1 + number2 ) / 2

--- cut here: end ---------------------------------------------------- 2. -The middle of two numbers, begin and end is thus similarly located at --- cut here: begin --------------------------------------------------

( begin + end ) / 2

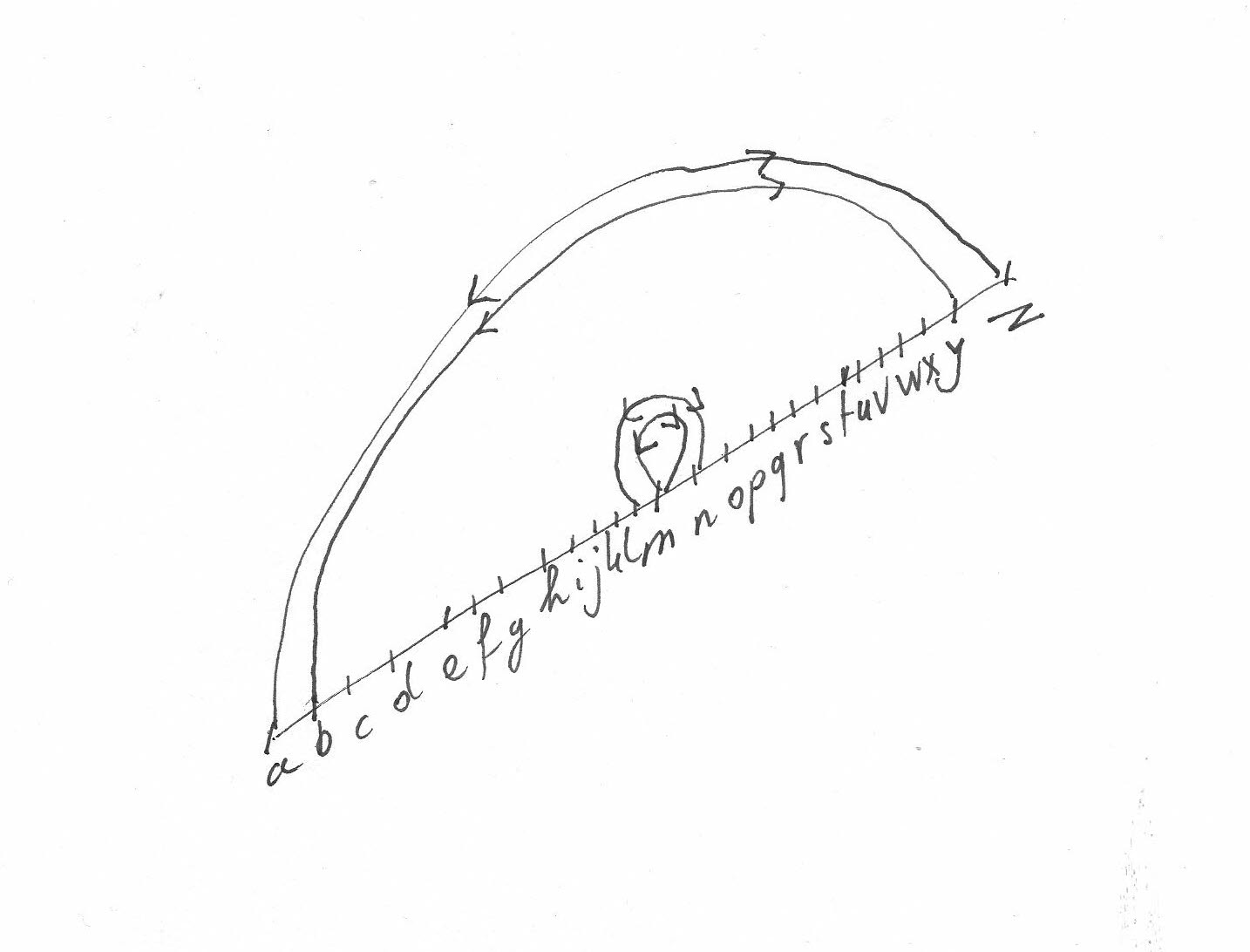

--- cut here: end ---------------------------------------------------- --- 2. -This principle of swapping around a central axis you can apply to a character range, a text position range, ... 1. -Special case of swapping around central axis: Character: Choose the central axis in the middle the English alphabet 1. -rot( 13 ) encryption: Swapping is a special case of a rotation. You 'ROT'ate here at character position 13. Thus it is called rot( 13). 1. -In general this central axis position is at ( begin + end ) / 2 2. -here the central axis is located at the center of the English alphabet. There are 26 characters in the English alphabet. Thus the axis is located at ( 1 + 26 ) / 2 = 27/2 = 13.5 = Rounding this to 13 gives the central axis at the character 'm' English alphabet abcdefghijklmnopqrstuvwxyz ^ | middle 3. -Characters are thus swapped around this axis Thus a is swapped with n b is swapped with o ... m is swapped with m -- thus the central character is swapped with itself ... k is swapped with y l is swapped with z 4. -TSE macro (published earlier) illustrating this principle 1. -E.g. This simple Caesar-cypher encryption that replaces each English letter with the one 13 places forward or back along the alphabet, so that "The butler did it!" becomes "Gur ohgyre qvq vg!" --- cut here: begin --------------------------------------------------

 proc Rot13()
  BegFile()

  loop
    case CurrChar()
      when Asc('a')..Asc('m'), Asc('A')..Asc('M')
        InsertText(Chr(CurrChar() + 13), _OVERWRITE_)
      when Asc('n')..Asc('z'), Asc('N')..Asc('Z')
        InsertText(Chr(CurrChar() - 13), _OVERWRITE_)
      otherwise
        if not NextChar()
          break
        endif
    endcase
  endloop
end

<F12> Rot13()

--- cut here: end ---------------------------------------------------- === Self-inverse: If you then once press <F12> you will see this macro source text change to: --- cut here: begin --------------------------------------------------

cebp Ebg13()
  OrtSvyr()

  ybbc
    pnfr PheePune()
      jura Nfp('n')..Nfp('z'), Nfp('N')..Nfp('Z')
        VafregGrkg(Pue(PheePune() + 13), _BIREJEVGR_)
      jura Nfp('a')..Nfp('m'), Nfp('A')..Nfp('M')
        VafregGrkg(Pue(PheePune() - 13), _BIREJEVGR_)
      bgurejvfr
        vs abg ArkgPune()
          oernx
        raqvs
    raqpnfr
  raqybbc
raq

<s12> Ebg13()

--- cut here: end ---------------------------------------------------- === And if you press <F12> once again, you get the original source code back. === Most Usenet news reading and posting programs include a rot13 feature. --- It is e.g. used to enclose the text in a sealed wrapper that the reader must choose to open -- e.g., for posting things that might offend some readers, or spoilers. --- 2. -Special case of swapping around central axis: Character: Choose the central axis in the middle of the ASCII 33 to ASCII 255 range 1. -In general this central axis position is at 1. -In general this axis position is at --- cut here: begin --------------------------------------------------

( begin + end ) / 2

--- cut here: end ---------------------------------------------------- 2. -Thus here the central axis is located at --- cut here: begin --------------------------------------------------

              ( 33 + 255 ) / 2

              = 288 / 2

              = 144

--- cut here: end ---------------------------------------------------- 3. -Thus --- cut here: begin --------------------------------------------------

             character ASC( 33 ) is swapped with character ASC( 255 )
             character ASC( 34 ) is swapped with character ASC( 254 )
             character ASC( 35 ) is swapped with character ASC( 253 )
             ...
             character ASC( 144 ) is swapped with character ASC( 144 )  -- thus the central character is swapped with itself

--- cut here: end ---------------------------------------------------- and here you can stop, because if you should continue, you because you should undo your action, e.g. character ASC( 145 ) should swapped with character ASC( 143 ), so basically putting this characters back in their original position. Because all this central axis swapping methods are self inverse, this code is also self inverse. The same code encodes and decodes. Or thus running it once encodes. And running it twice decodes. And so on. 3. -This principle you can apply to a text position range 1. -Special case of swapping around central axis: Text: Choose the central axis in the middle of the given string (reversing a string) 1. -The axis is located at the half of the range 1. -In general this central axis position is at --- cut here: begin --------------------------------------------------

( begin + end ) / 2

--- cut here: end ---------------------------------------------------- 2. -Thus here the central axis is located at --- cut here: begin --------------------------------------------------

( 1 + Length() ) / 2

--- cut here: end ---------------------------------------------------- 3. -You can thus write the following source code to reverse a string This is a rather optimal algorithm in terms of operations needed. Linear, needing in the order of N/2 operations. 4. -E.g. create the following program: --- cut here: begin --------------------------------------------------

// filenamemacro=getstrro.s

--- cut here: end ---------------------------------------------------- --- cut here: begin --------------------------------------------------

// STRING PROC FNStringGetReverseRotateS( STRING oldS )

--- cut here: end ---------------------------------------------------- --- cut here: begin --------------------------------------------------

FORWARD PROC Main()
FORWARD STRING PROC FNStringGetReverseRotateS( STRING s1 )


// --- MAIN --- //

PROC Main()
 STRING s[ MAXSTRINGLEN ] = "test"
 //
 IF ( NOT Ask( "string to reverse ", s ) )
  RETURN()
 ENDIF
 //
 Message( FNStringGetReverseRotateS( s ) )
END

// --- LIBRARY --- //

// library: string: get: reverse: rotate <description></description> <version control></version control> <version>1.0.0.0.1</version> (filenamemacro=getstrro.s) [kn, ri, sa, 01-03-2008 19:08:20]
STRING PROC FNStringGetReverseRotateS( STRING oldS )
 // e.g. PROC Main()
 // e.g.  STRING s[ MAXSTRINGLEN ] = "test"
 // e.g.  //
 // e.g.  IF ( NOT Ask( "string to reverse ", s ) )
 // e.g.   RETURN()
 // e.g.  ENDIF
 // e.g.  //
 // e.g.  Message( FNStringGetReverseRotateS( s ) )
 // e.g. END
 //
 // This algorithm needs in the order of ((string length) / 2) steps
 // Which is about 2 times as fast as the usual order of (string length) steps
 // algorithms. So should be one of the fastest algorithms to reverse a string
 //
 //
 STRING s[ MAXSTRINGLEN ] = oldS
 STRING characterTemporaryS[1] = ""
 //
 INTEGER minI = 1
 INTEGER maxI = Length( s )
 INTEGER I = 0
 INTEGER middleI = ( minI + maxI ) / 2
 //
 FOR I = minI TO middleI
  //
  // swap around the central axis
  //
  characterTemporaryS = s[ I ]
  s[ I ] = s[ maxI - I + minI ]
  s[ maxI - I + minI ] = characterTemporaryS
  //
 ENDFOR
 //
 RETURN( s )
 //
END

--- cut here: end ---------------------------------------------------- === Thus from --- cut here: begin --------------------------------------------------

s[ I ] = s[ maxI - I + minI ]

--- cut here: end ---------------------------------------------------- follows that the character at minimum position (=minI) is swapped with character at maximum position (=maxI). --- cut here: begin --------------------------------------------------

s[ minI ] = s[ maxI - (minI) + minI ] = s[ maxI ]

--- cut here: end ---------------------------------------------------- Further the character at the mininum + 1 position is swapped with character at maximum position - 1 position --- cut here: begin --------------------------------------------------

 s[ minI + 1 ] = s[ maxI - (minI + 1) + minI ] = s[ maxI - minI - 1 + minI ] = s[ maxI - 1 ]

--- cut here: end ---------------------------------------------------- Further the character at the mininum + 2 position is swapped with character at maximum position - 2 position --- cut here: begin --------------------------------------------------

 s[ minI + 2 ] = s[ maxI - (minI + 2) + minI ] = s[ maxI - minI - 2 + minI ] = s[ maxI - 2 ]

--- cut here: end ---------------------------------------------------- In general --- cut here: begin --------------------------------------------------

 s[ minI + J ] = s[ maxI - (minI + J) + minI ] = s[ maxI - minI - J + minI ] = s[ maxI - J ]

--- cut here: end ---------------------------------------------------- --- So one grows (=+J) from one end (=minI), the other diminishes (=-J) from the other end (=maxI), so they will reach closer to each other each step, until they meet at the center. === 2. -Special case of swapping around central axis: Text: Choose the central axis in the middle of the current line 1. -The axis is located at the half of the range 1. -In general this central axis position is at --- cut here: begin --------------------------------------------------

( begin + end ) / 2

--- cut here: end ---------------------------------------------------- 2. -Thus here the central axis is located at --- cut here: begin --------------------------------------------------

( 1 + CurrLineLen() ) / 2

--- cut here: end ---------------------------------------------------- 1. -If you take in account special characters like spaces, which should come at the end of the line, and thus by design are removed by TSE if you save your file, better start at the first non-space position in the beginning of the line. Thus use --- cut here: begin --------------------------------------------------

( PosFirstNonWhite() + CurrLineLen() ) / 2

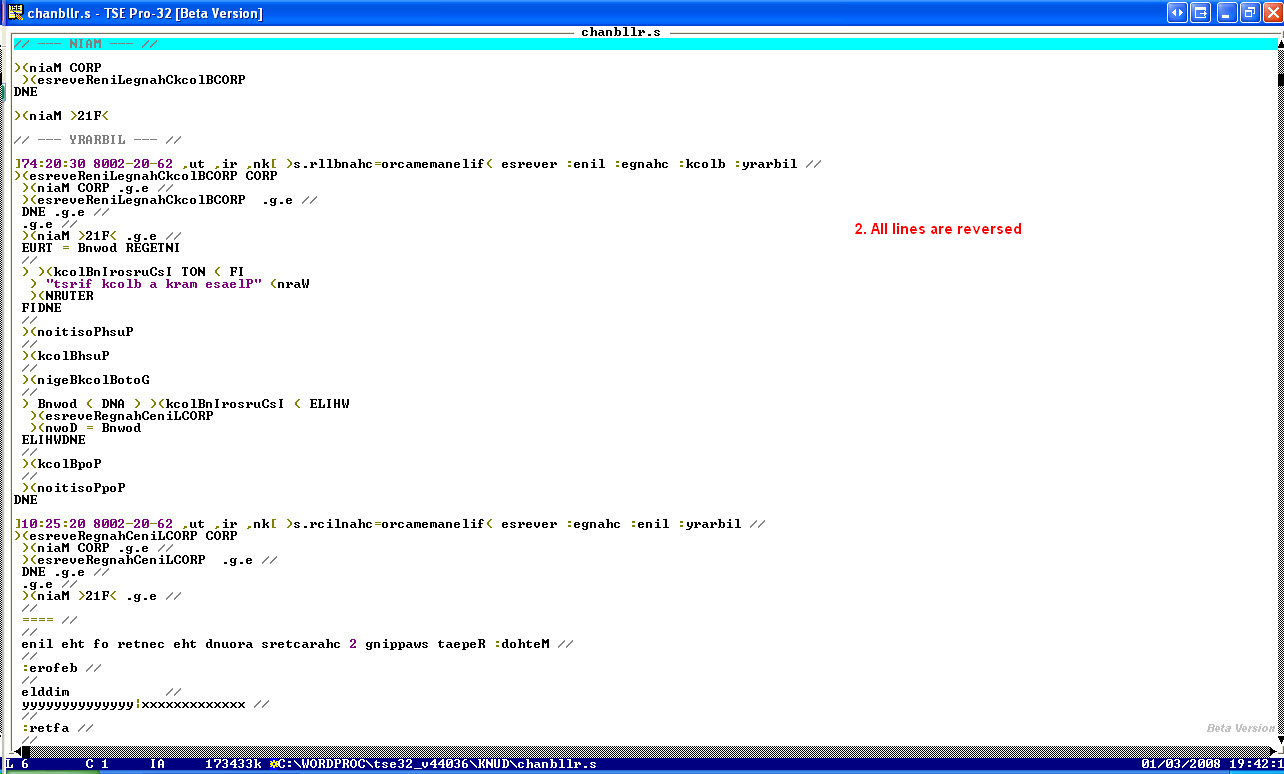

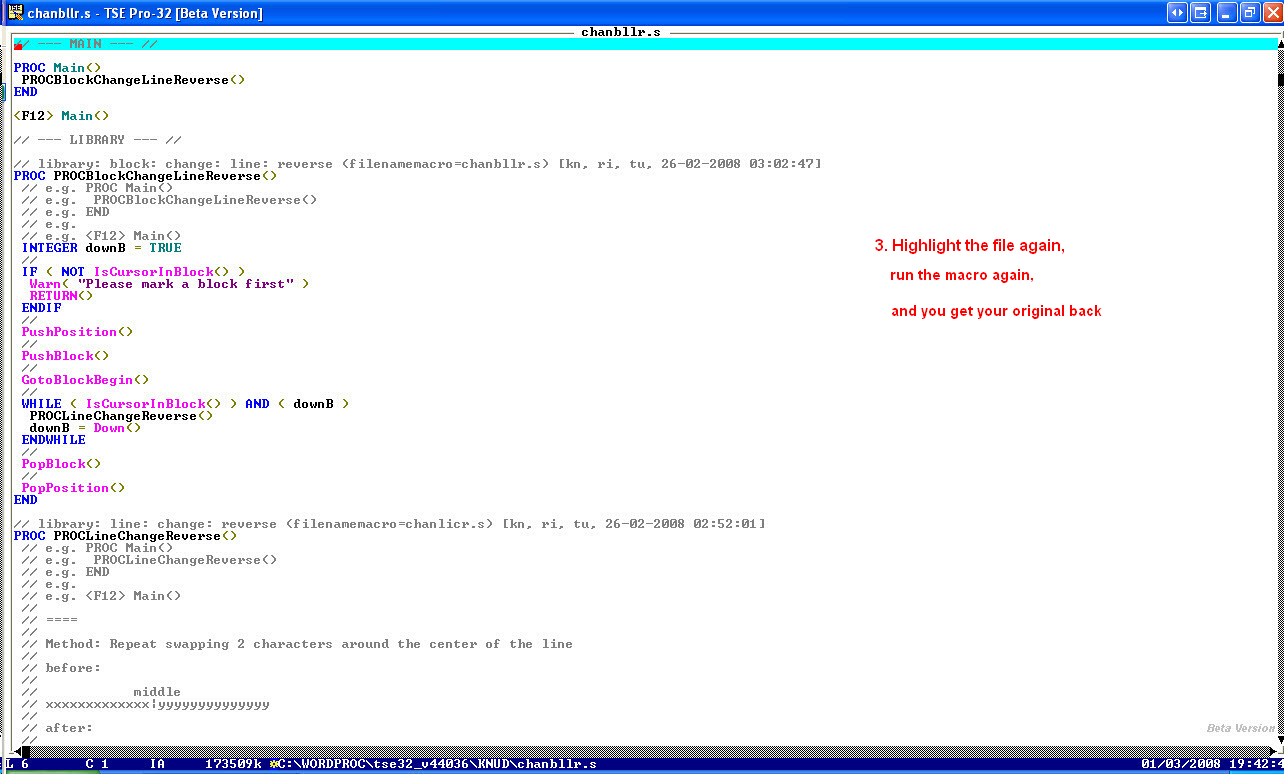

--- cut here: end ---------------------------------------------------- 2. -Then swap each character on the line 3. -You can then e.g. repeat this same action on each line of a block Because all this central axis swapping methods are self inverse, this code is also self inverse. The same code encodes and decodes. Or thus running it once encodes. And running it twice decodes. And so on. === In this example you swap characters around the center of a line --- cut here: begin --------------------------------------------------

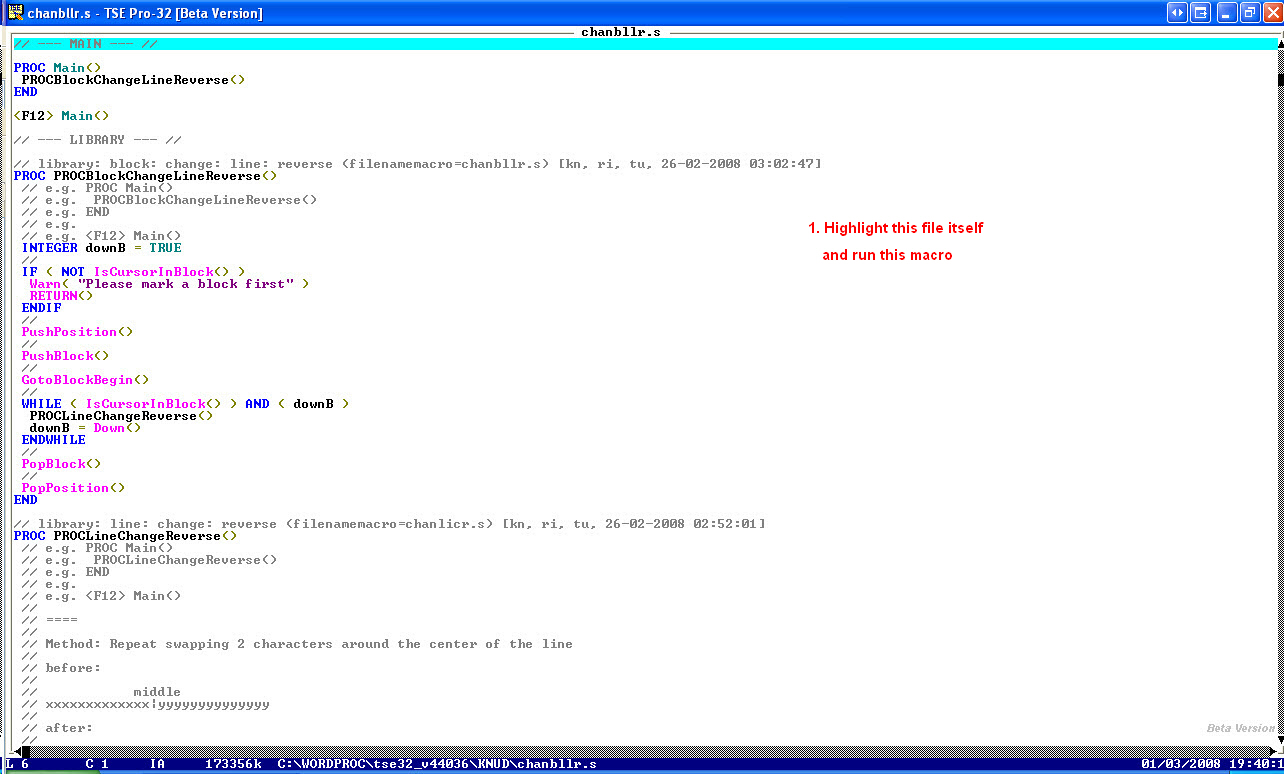

// PROC PROCBlockChangeLineReverse()

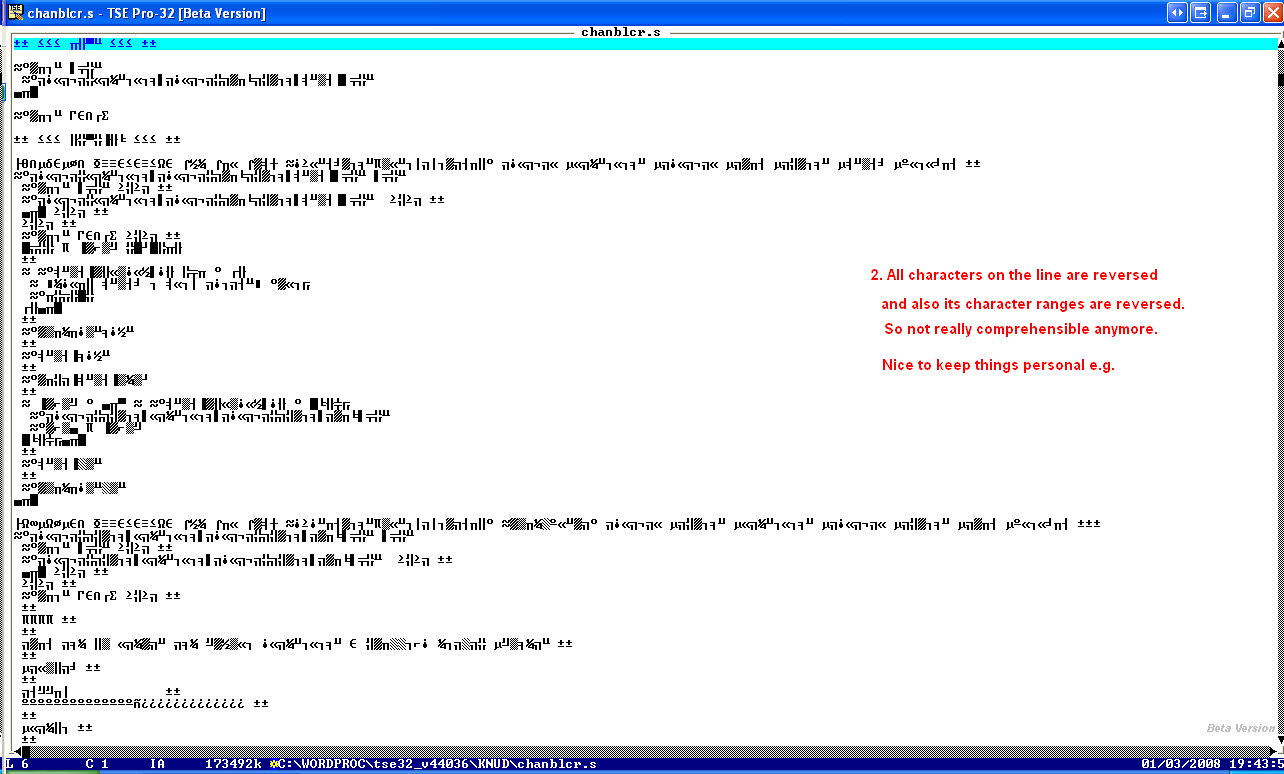

--- cut here: end ---------------------------------------------------- --- In the following example you see a combination of character range swapping and text line swapping. --- cut here: begin --------------------------------------------------

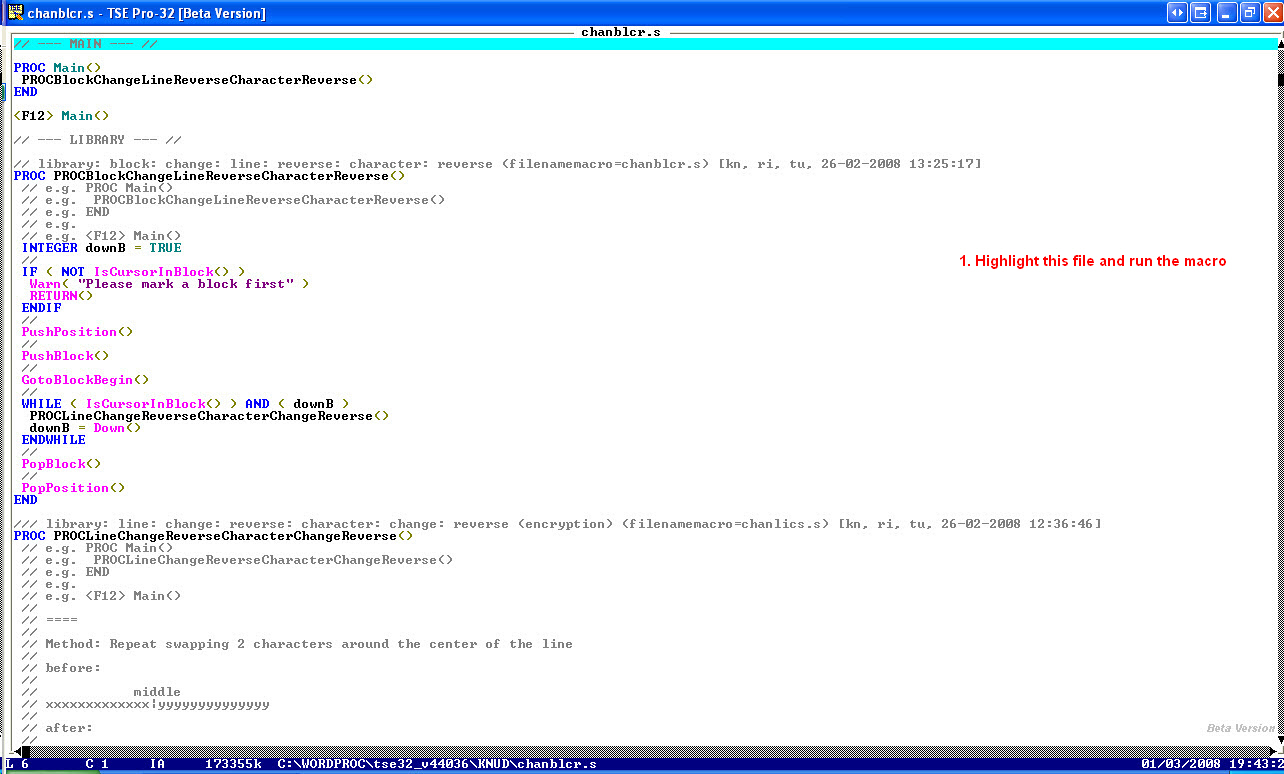

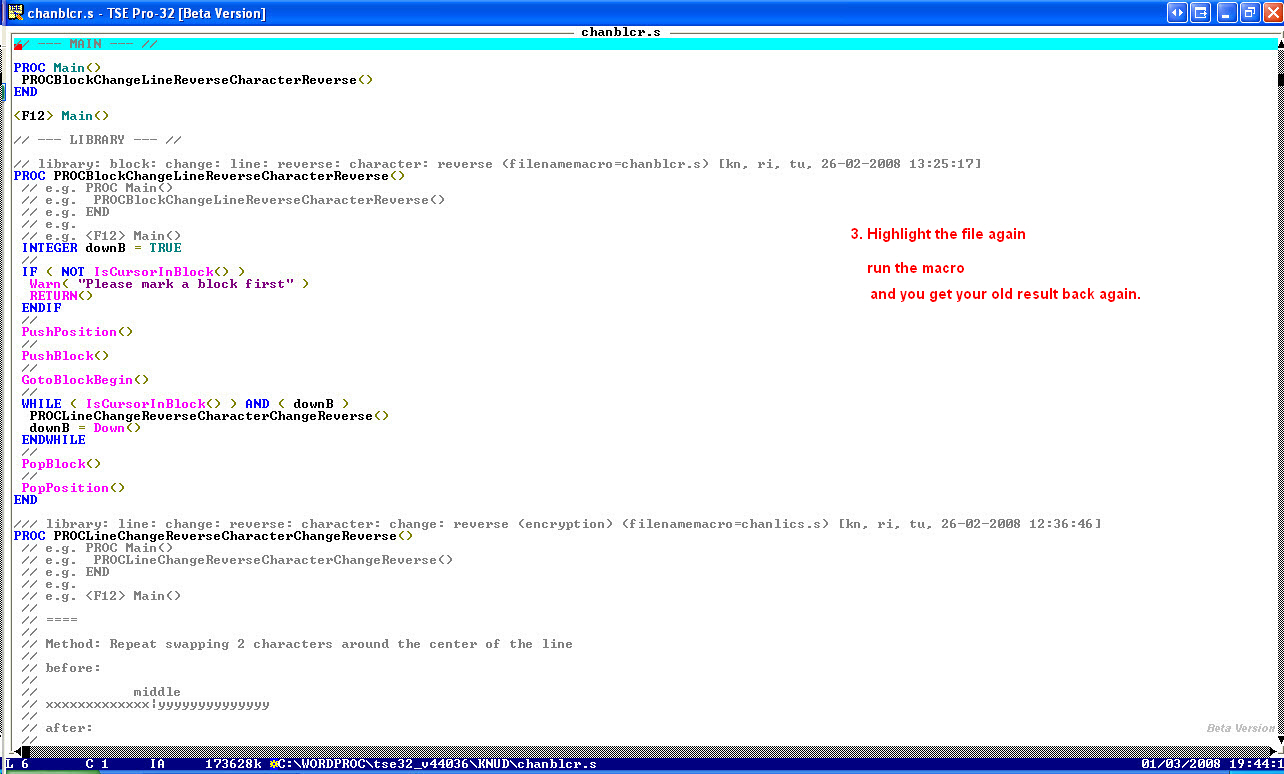

// PROC PROCBlockChangeLineReverseCharacterReverse()

--- cut here: end ---------------------------------------------------- === Book: see also: === Diagram: see also: === File: see also: === File: version: control: see also: === Help: see also: === Image: see also:
